AC110~280V Web Guiding System Digital Controller With Synchonrous
Actuator True Engin
Whole Digital Web Guiding System With Digital Controller
Photoelectric Sensor Synchonrous Actuator

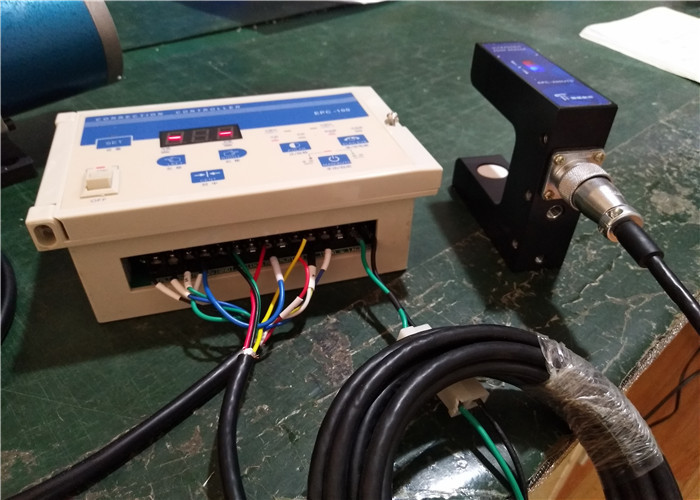

Digital edge position controller EPC-100
EPC-100 edge position controller is a high accuracy controller can
trace the edge of material. It is high reliability, high
anti-interference, long life spam. EPC-100 with photoelectric
sensor and synchronous motor, which constitute digital edge
position control system, is widely applied in printing, packaging,
textile industry of roll materials’ edge position control.
Features
1. With single electric-eye , same edge/opposite edge double
electric-eye 3 working mode.
2. Drive single phase synchronous motor and web guiding sensitivity
is adjustable, motor forward/reverse can be changed.
| Parameters |
| Model | EPC-100 |
| Power Supply | AC180~260V | accuracy | 1mm |
| Control output | Single phase 220V | motor | EPD-104 |
| Detector | EPS-B OR EPC-C trace edge |
Photoelectric sensor EPS-B
EPS-B photoelectric sensor is visible light correlation type edge
sensor, with dual discrete output and dual analog output, which is
suitable to tracing edge of rolling material for web guiding
control.
| Specification |
| Item No. | EPS-B |
| Power supply | DC 10~30V±10% Wave＜10% | Light source | White,red,blue,green |
| current consumption | ≤50mA | Currency load | 100mA |
| Detect method | Photoelectric correlation | Environment temperature | -15℃~+65℃ |
| Detect range | 5mm | Detect accuracy | 0.02mm |
| Matched Controller | EPC=100/300(digital output) trace edge | Shell | Industrial plastic |
EPC-200(analog output) trace edge | Suitable material | Non-transparent film |
| Electrical connection | EPC-100/300: power suply(+): red Power supply(-): black digital out
1: yellow didital output 2: green |
| EPC-200: 5P air plug docking |
Synchronous motor linear drive
EPD-100 series synchronous motor linear drive is with compact &
reasonable compact, elegant appearance, strong mechanical strength,
full connection spare parts, easily installed and running stable, ,
tiny mechanical wear, long service life, Can work match the EPC -
100 edge position controller.
Features:
1. Synchronous motor drive, cable connected.
2. Compact structure, elegant appearance.
3. Embedded left/right limit switch and middle magnetic switch
| Specification |
| Item No. | EPD-104 |
| Stroke | 150mm |
| Thrust | 200kg |
| Thrust-weight | 2T |
| Max drive speed | 10mm/s |
| Configuration | Detector: EPS-A/B, EPS-C with customized EPC-100 |
