High Performance Web Guiding System Analog Control DC 24V Servo Actuator Web Guiding Controller

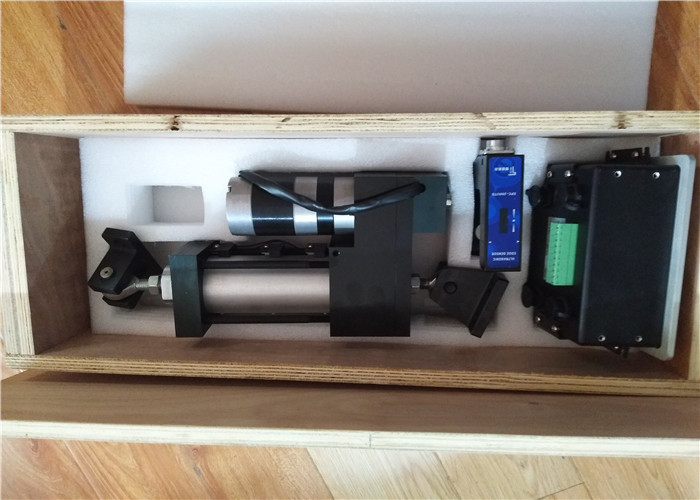

Whole Servo Web Guiding System Servo Controller Ultrasonic Sensor DC 24V Servo Actuator

EPC200 servo edge position controller is a high precision controller with PI control, can choose a variety of detector, to trace edge, trace line. With ultrasonic, photoelectric detector, servo motor/drive cylinder servo system form a servo edge position control system,which can be widely used in printing, packaging, paper making, textile printing and dyeing industry of roll material in edge position control

Function

1. Small size, compact structure, with internal control power supply

2. Using panel membrane switches, simple operation, beautiful and generous

3. Can select ultrasonic, photoelectric detector to trace edge and trace line,control automatically.

4. The advanced PI algorithm , excellent man-machine interface, convenient for user

5. The state of the system parameters have power- fail protection function

6. With functions of RS485 communication interface,with PC, PLC collecting and distributing control system

7. External can connect left and right position limit switch,External center offset adjustment can be performed

8. Can adjust external center- deviation

EPS-C

Ultrasonic sensor EPS-C

EPS-C ultrasonic sensor adopts The principle of high frequency ultrasound rectilinear propagation to detector the edge of material. Compared to photoelectric sensor, it is not affected by material transparency and easy to use. Suitable to trace edge of non-breathable material (eg. Plastic film, paper etc.), unsuitable for breathable material as cloth and non-woven material.

Servo motor linear drive EPD-200

EPD-200 series servo motor linear drive adopts brushless servo motor drive, compared to other motors, it is high efficiency, high speed, fast response, big starting torque, accurate brake, maintenance-free. The drive part adopts high precision ball-screw, high efficiency, low return difference and precise location, suitable to work with EPC-200 edge position controller.

Features:

1. Brushless motor drive, maintenance-free

2. Precise screw, precise location

3. Embedded left/right limit switch and cent magnetic switch (EPD-204)

EPC-200 edge position control system.pdf
