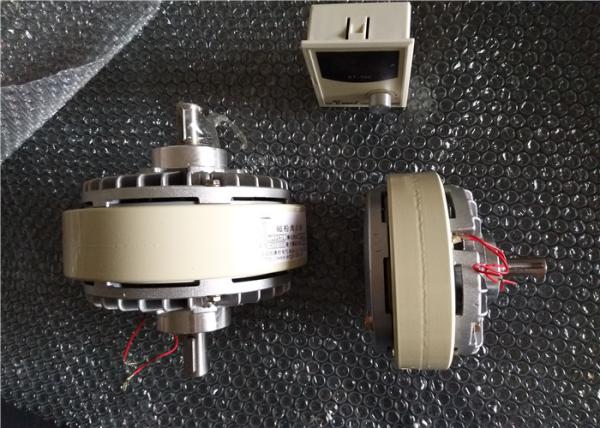

100NM Torque Magnetic Powder Clutch 24V DC Durability For Printing Used In Face Mask Machine

Brief introduction

A high quality magnetic powder clutch is a special type of electromagnetic clutch which does not use friction plates. Instead, it uses a fine powder of magnetically susceptible material (typically stainless steel) to mechanically link an otherwise free wheeling disc attached to one shaft, to a rotor attached to the other shaft. When a magnetic field is applied to the powder, it forms chains connecting the disc and rotor. The strength of the chains depends on the strength of the magnetic field. We use the finest materials available for magnetic components to yield high friction indexes, as well as premium non-asbestos linings to improve response time and extend working life. We will be reliable powderbrake supplier for you.

Featured advantages

1. Fast response. Dry design means instant reaction to commands.

2. Durability. Excellent heat dissipation and quality materials mean long life, even under high frequency and high performance conditions.

3. Easy to install and maintain. Sealed bearing race eliminates the need for removal of the center core. No dust brush is needed, and operation is simper and easier.

4. No adjustment of the motor. The motor is designed so that it does not need adjustment of the friction surface, and once it is installed only very minor adjustments are needed.

5. Sure motion. One-piece plate will not slip even under the strongest vibration for longer life.

6. Adjustable torque. Torque levels can be increased or decreased by changing the current, making it suitable for a variety of applications.

Magnetic powder clutch work principle:

Magnetic particle clutch | brake is a type of auto-control component with high-performance which uses driving and driven units as main body, powder (magnetic powder) with high magnetic conductivity as working medium and exciting current as control means so as to achieve control transfer/braking torque and to keep the linear relationship between input current and output torque. With the development of the modern industry, it plays an increasingly important role in all industrial fields and demonstrates great advantages over other components

The products are widely used in winding and unwinding starting/braking control, stamping startup, overload protection, position control, speed control, tension control, artificial load and relevant fast control systems.

We also have Magnetic Powder Brake

Single shaft

Hollow

Wuhan Micro Control Electric Co,LTD ( Wuhan True Engin Technology Development Co., Ltd ) is located in the coast of South Lake and surrounded by numerous colleges and universities.The Company focuses on the developing and production of industrial test and control system .True Engin is the first company which is committed to the tension control system developing in China. After more than ten years of prosperity , it has forged an excellent team in developing and application .Our Instructors lead tens of engineering masters and CNC technology professionals that treating technology innovation,high-quality protection to the products and seamless customer service as the thrust of the development of enterprises.We committed to upgrading the technology of Chinese Printing and Packaging Machinery Control System，Complex Control System and Cutting Machine Control System.Our target is comprehensive upgrading of the competitiveness of domestic industry of Machine Controlling

In the direction of Networked Measurement and Control System，we have a large number of advanced test and analysis equipment,software and Network Control Development Platform.We have the equipments such as U.S. HP, TEKTRONIX, NI, FLUKE and so on.We also have a close co-operation with the Measurement control Institute ，the Friction Institute, the Materials Institute of the Wuhan Technology University，and have a wide range of products co-operation with the Ordnance factory 711, 3303. Core parts through 711 SMT production lines, product after 711 of ISO9000 quality management system review and GJB related mechanical and electrical performance test.

Through years of research and development our company has formed a series of products about PLC、tension control system、tension sensing system、tension controller、tension detector、Mitsubishi magnetic powder brake、Mitsubishi tension detector、Mitsubishi tension controller、magnetic powder clutch and so on.The series of tension products are widely equipped with machinery equipments on a variety of printed-packaging, textile, wire and cable industry in the domestic, we have successfully provided the best match of tension control system and OEM for several magnetic clutch industry or magnetic powder brake industry.
