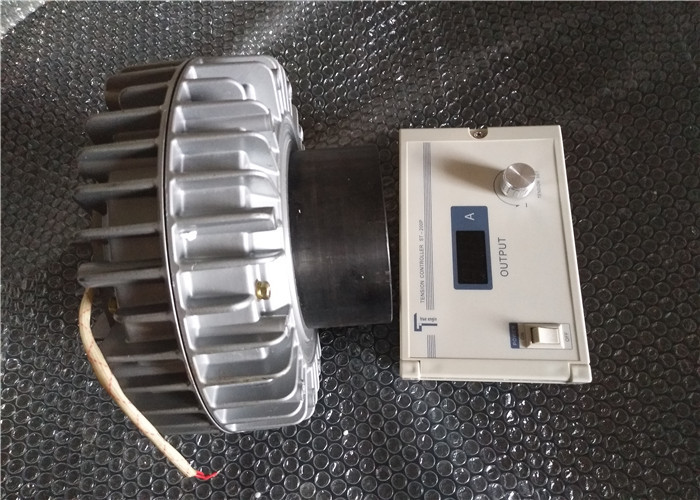

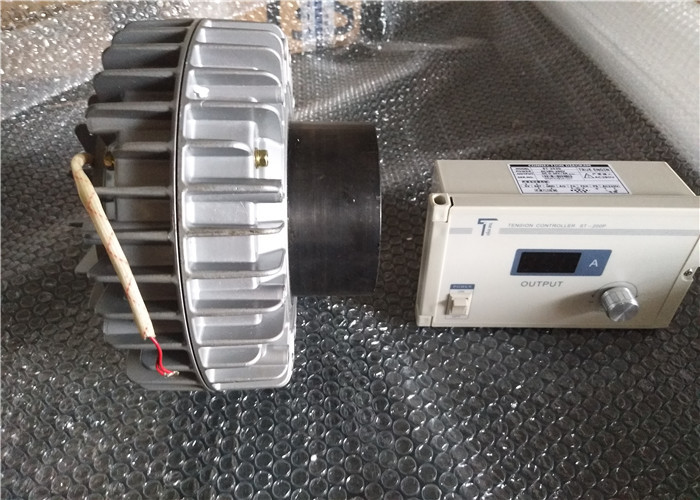

Cellular Center Ring Magnetic Powder Clutch 200NM Speed 1000
Alternative Mitsubishi
Application of magnetic powder clutch
1. In addition, magnetic powder clutch can also be used to buffer
starting, overload protection, control, etc.;
2. Magnetic powder clutch can also be used for mechanical
transmission test load, brake, etc.
About life of magnetic powder clutch
The use of magnetic powder clutch/brake life lies in the life of
the magnetic powder.In general, magnetic powder in the condition of
not overloaded, its service life is 4500~7500 hours;But in some
condition it can prolong service life many times, such as: reduce
the magnetic powder clutch/brake torque, relative sliding speed and
slip power to the rating of 50% 70%.That is to say, when the
design, allowance enlarge some as much as possible.
Magnetic powder clutch work principle:
Magnetic particle clutch | brake is a type of auto-control
component with high-performance which uses driving and driven units
as main body, powder (magnetic powder) with high magnetic
conductivity as working medium and exciting current as control
means so as to achieve control transfer/braking torque and to keep
the linear relationship between input current and output torque.
With the development of the modern industry, it plays an
increasingly important role in all industrial fields and
demonstrates great advantages over other components
The products are widely used in winding and unwinding
starting/braking control, stamping startup, overload protection,
position control, speed control, tension control, artificial load
and relevant fast control systems.
| Model | Torque NM | Voltage
V | Current
A | Speed
rpm/min | Slip power
w | Outline dimention |
| D | L |
| ZA-0.6A | 6 | 24 | 0.3 | 1800 | 130 | 128 | 86 |
| ZA-1.2A | 12 | 24 | 0.39 | 1800 | 320 | 160 | 103 |
| ZA-2.5A | 25 | 24 | 0.73 | 1800 | 450 | 180 | 119 |
| ZA-5A | 50 | 24 | 0.94 | 1800 | 700 | 220 | 150 |
| ZA-10A | 100 | 24 | 1.21 | 1800 | 900 | 275 | 166 |
| ZA-20A | 200 | 24 | 1.9 | 1000 | 1900 | 335 | 198 |
| ZA-40A | 400 | 24 | 2.2 | 1000 | 2600 | 360 | 258 |
| Model | Hollow shaft size | Flange size | Fixed stator Size |
| d(H7) | b(F8) | L1 | L2 | L3 | d1*depth | D1(g7) | D2 | D3 | D4 | L4 | d2*depth |
| ZA-0.6A | 15 | 4 | 4 | 21 | 21 | M6*10 | 70 | 60 | 60 | 82 | 7 | M4*8 |
| ZA-1.2A | 18 | 5 | 5 | 25 | 32 | M6*10 | 80 | 68 | 68 | 96 | 13 | M6*8 |
| ZA-2.5A | 20 | 5 | 5 | 26 | 36 | M6*10 | 90 | 80 | 80 | 114 | 17 | M6*8 |
| ZA-5A | 30 | 7 | 7 | 31 | 48 | M8*12 | 110 | 95 | 95 | 150 | 20 | M8*12 |
| ZA-10A | 35 | 10 | 10 | 32 | 48 | M10*18 | 125 | 110 | 110 | 176 | 18 | M10*18 |
| ZA-20A | 45 | 12 | 12 | 45 | 59 | M10*18 | 160 | 140 | 140 | 200 | 21 | M10*18 |
| ZA-40A | 50 | 14 | 14 | 50 | 68 | M10*18 | 160 | 140 | 140 | 200 | 21 | M10*18 |
