Analog Control Type Edge Guide System 200kg 150 Watt With 14m/S Speed Web Guiding Edge Position Control

Web guiding system including web controller + ultrasonic sensor + Servo motor drive

Rolling material edge position control system overview

System Composition

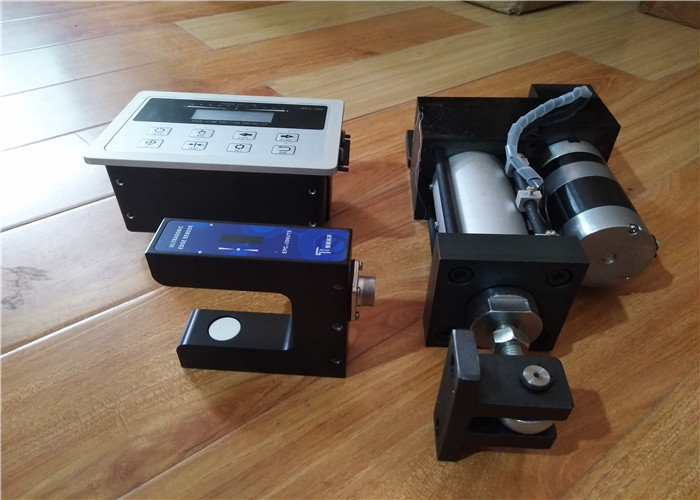

Edge position control system is consists of edge position controller, edge position sensor, and servo motor drive 3 parts.

Application:

Suitable for edge position control of printing machine, splitting machine, compound machine, coating machine, rubber machine, textile machine etc.

Sensor for suitable material

Edge position control system’s selection

1. Servo edge position control system constitute

Features: high accuracy, fast respond, support to trace edge and trace line working mode

Controller: EPC-200 analog edge position controller

Detector:

Motor drive: EPD-204

• Digital edge position control system constitute

Features: cost-effective web guiding system, support to trace edge and trace line working mode, but it is not suitable for transparent material.

Controller: EPC-100 digital edge position controller

Detector:

Motor: EPD-104

• Customized digital edge position control system constitute

Features: suitable for transparent material, support trace edge working mode, high performance & cost-effective.

Controller: EPC-100 digital edge position controller customized

Detector:

Motor: EPD-104

EPC-200 edge position control system.pdf

Wuhan Micro Control Electric Co,LTD ( Wuhan True Engin Technology Development Co., Ltd ) is located in the coast of South Lake and surrounded by numerous colleges and universities.The Company focuses on the developing and production of industrial test and control system .True Engin is the first company which is committed to the tension control system developing in China. After more than ten years of prosperity , it has forged an excellent team in developing and application .Our Instructors lead tens of engineering masters and CNC technology professionals that treating technology innovation,high-quality protection to the products and seamless customer service as the thrust of the development of enterprises.We committed to upgrading the technology of Chinese Printing and Packaging Machinery Control System，Complex Control System and Cutting Machine Control System.Our target is comprehensive upgrading of the competitiveness of domestic industry of Machine Controlling

In the direction of Networked Measurement and Control System，we have a large number of advanced test and analysis equipment,software and Network Control Development Platform.We have the equipments such as U.S. HP, TEKTRONIX, NI, FLUKE and so on.We also have a close co-operation with the Measurement control Institute ，the Friction Institute, the Materials Institute of the Wuhan Technology University，and have a wide range of products co-operation with the Ordnance factory 711, 3303. Core parts through 711 SMT production lines, product after 711 of ISO9000 quality management system review and GJB related mechanical and electrical performance test.

Through years of research and development our company has formed a series of products about PLC、tension control system、tension sensing system、tension controller、tension detector、Mitsubishi magnetic powder brake、Mitsubishi tension detector、Mitsubishi tension controller、magnetic powder clutch and so on.The series of tension products are widely equipped with machinery equipments on a variety of printed-packaging, textile, wire and cable industry in the domestic, we have successfully provided the best match of tension control system and OEM for several magnetic clutch industry or magnetic powder brake industry.
