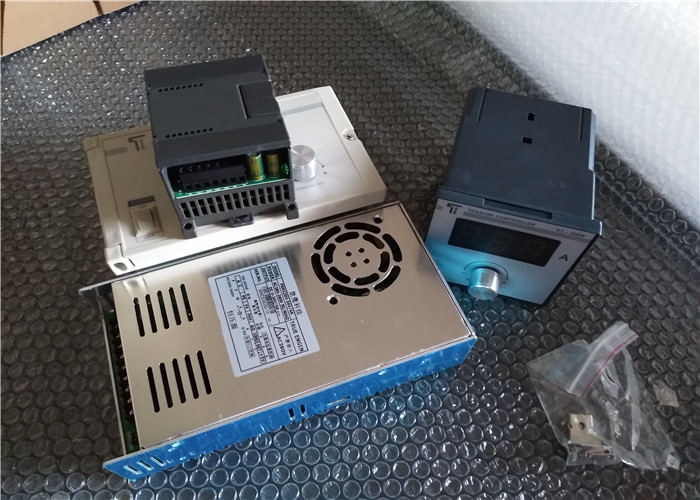

Magnetic Powder Brake Constant Voltage Power Supply For Slitting Machine

Brief Introduction

PSM 24V constant current/constant voltage power supply is the first PLC module constant current/voltage power supply, exquisite and high precision, easy to operate, strict protection, with following specification:

Exclusive Siemens shape and interface

No fans, high efficiency

Exclusive over current, short-circuit protection, military quality.

Exclusive voltage current double circuit, control is more stability, higher precision, good operation.

PSM 24 V constant voltage source

Can work with Powder brake

1. Rated torque: 6 to 400 (N · m)
2. Natural cooling / compulsory extended shaft type
a. 15 r / min from available
b. through the compressed air is blown into the voids in the heat to improve the thermal capacity.

Description:

Powder brake is used for tension control, overload protector, torque loader, such as printing machine, paper making machine, re-reeling machine, wire drawing machine, metal calender, film processor, textile machine etc.; or the loading device when doing loading experiments, such as motor, engine, hydraulic gear reducer.


Magnetic brake is based on electromagnetic theory and the use of magnetic torque transmission. Its exciting current and transmission of torque with a linear relationship between the basic features. Has nothing to do with the slip case to pass a certain torque, with fast response, simple structure, no pollution, no noise, no shock and vibration energy-saving advantages. It is multi-purpose, superior performance, the automatic control devices. It is now widely used in various machinery for the purpose of braking, power test load, unreeling tension control and so on.

PSM24V power supply.pdf

Wuhan Micro Control Electric Co,LTD ( Wuhan True Engin Technology Development Co., Ltd ) is located in the coast of South Lake and surrounded by numerous colleges and universities.The Company focuses on the developing and production of industrial test and control system .True Engin is the first company which is committed to the tension control system developing in China. After more than ten years of prosperity , it has forged an excellent team in developing and application .Our Instructors lead tens of engineering masters and CNC technology professionals that treating technology innovation,high-quality protection to the products and seamless customer service as the thrust of the development of enterprises.We committed to upgrading the technology of Chinese Printing and Packaging Machinery Control System，Complex Control System and Cutting Machine Control System.Our target is comprehensive upgrading of the competitiveness of domestic industry of Machine Controlling

In the direction of Networked Measurement and Control System，we have a large number of advanced test and analysis equipment,software and Network Control Development Platform.We have the equipments such as U.S. HP, TEKTRONIX, NI, FLUKE and so on.We also have a close co-operation with the Measurement control Institute ，the Friction Institute, the Materials Institute of the Wuhan Technology University，and have a wide range of products co-operation with the Ordnance factory 711, 3303. Core parts through 711 SMT production lines, product after 711 of ISO9000 quality management system review and GJB related mechanical and electrical performance test.

Through years of research and development our company has formed a series of products about PLC、tension control system、tension sensing system、tension controller、tension detector、Mitsubishi magnetic powder brake、Mitsubishi tension detector、Mitsubishi tension controller、magnetic powder clutch and so on.The series of tension products are widely equipped with machinery equipments on a variety of printed-packaging, textile, wire and cable industry in the domestic, we have successfully provided the best match of tension control system and OEM for several magnetic clutch industry or magnetic powder brake industry.
