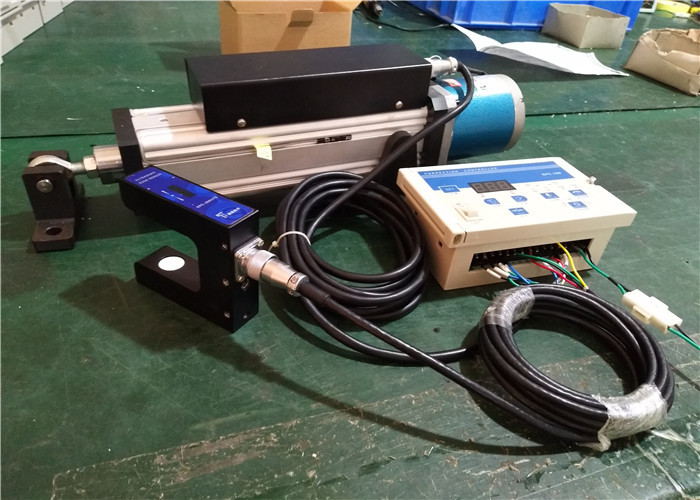

Whole Edge Position Control System With Digital Controller Edge Sensor And Edge Motor

Rolling material edge position control system overview

System Composition

Edge position control system is consists of edge position controller, edge position sensor, and servo motor drive 3 parts.

Application:

Suitable for edge position control of printing machine, splitting machine, compound machine, coating machine, rubber machine, textile machine etc.

Sensor for suitable material

Edge position control system’s selection

1. Servo edge position control system constitute

Features: high accuracy, fast respond, support to trace edge and trace line working mode

Controller: EPC-200 analog edge position controller

Detector:

Motor drive: EPD-204

• Digital edge position control system constitute

Features: cost-effective web guiding system, support to trace edge and trace line working mode, but it is not suitable for transparent material.

Controller: EPC-100 digital edge position controller

Detector:

Motor: EPD-104

• Customized digital edge position control system constitute

Features: suitable for transparent material, support trace edge working mode, high performance & cost-effective.

Controller: EPC-100 digital edge position controller customized

Detector:

Motor: EPD-104

Digital edge position controller EPC-100

EPC-100 edge position controller is a high accuracy controller can trace the edge of material. It is high reliability, high anti-interference, long life spam. EPC-100 with photoelectric sensor and synchronous motor, which constitute digital edge position control system, is widely applied in printing, packaging, textile industry of roll materials’ edge position control.

Features

• With single electric-eye , same edge/opposite edge double electric-eye 3 working mode.
• Drive single phase synchronous motor and web guiding sensitivity is adjustable, motor forward/reverse can be changed.

Photoelectric sensor EPS-A

EPS-A photoelectric sensor is coaxial reflective type edge position sensor, suitable to trace edge of non-transparent material for web guiding control.

Features:

• Discrete output, can work with EPC-100 edge position controller
• Dual light source, improve color difference
• Potentiometer calibration
• Simple and stable.

Ultrasonic sensor EPS-C

EPS-C ultrasonic sensor adopts The principle of high frequency ultrasound rectilinear propagation to detector the edge of material. Compared to photoelectric sensor, it is not affected by material transparency and easy to use. Suitable to trace edge of non-breathable material (eg. Plastic film, paper etc.), unsuitable for breathable material as cloth and non-woven material.

Synchronous motor linear drive

EPD-100 series synchronous motor linear drive is with compact & reasonable compact, elegant appearance, strong mechanical strength, full connection spare parts, easily installed and running stable, , tiny mechanical wear, long service life, Can work match the EPC - 100 edge position controller.

Features:

• Synchronous motor drive, cable connected.
• Compact structure, elegant appearance.
• Embedded left/right limit switch and middle magnetic switch

EPC-100manual instruction -1.pdf

EPC-100manual instruction -2.pdf

EPC-100manual instruction -3.pdf

EPC-100manual instruction -4.pdf
