Photoelectric Sensor Edge Position Control EPS-A For Digital Web
Guiding System For Face Mask Machine
PhotoElectric Sensor Edge Position Control Sensor For Digital Web
Guiding System

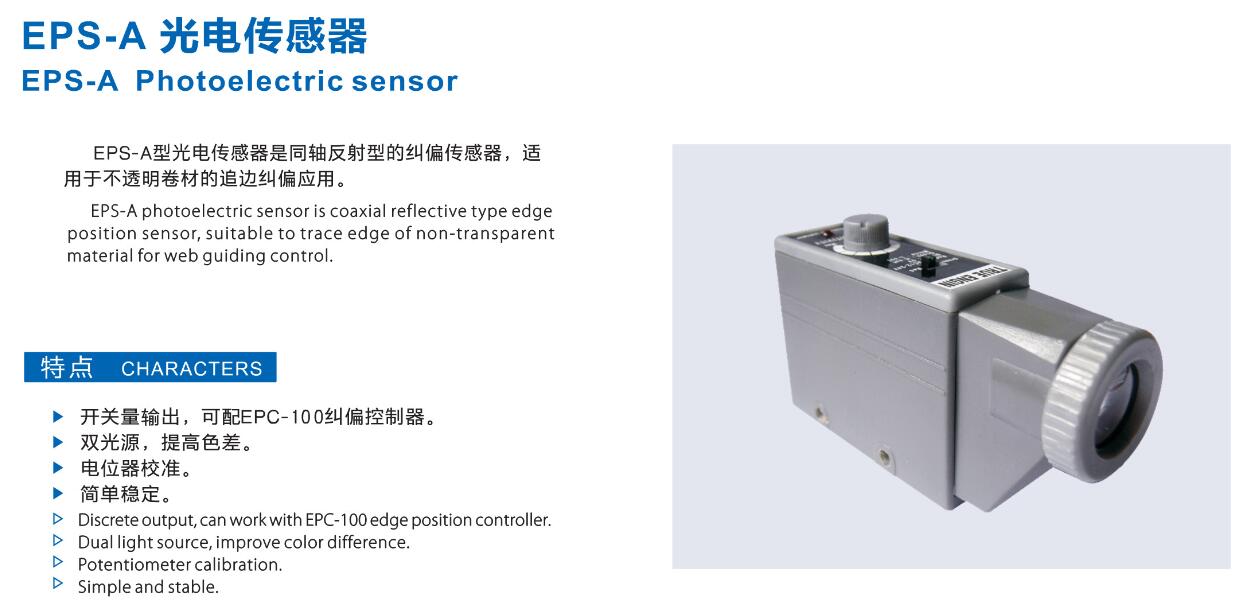

Photoelectric sensor EPS-A
EPS-A photoelectric sensor is coaxial reflective type edge position
sensor, suitable to trace edge of non-transparent material for web
guiding control.
Features:
1. Discrete output, can work with EPC-100 edge position controller
2. Dual light source, improve color difference
3. Potentiometer calibration
4. Simple and stable.

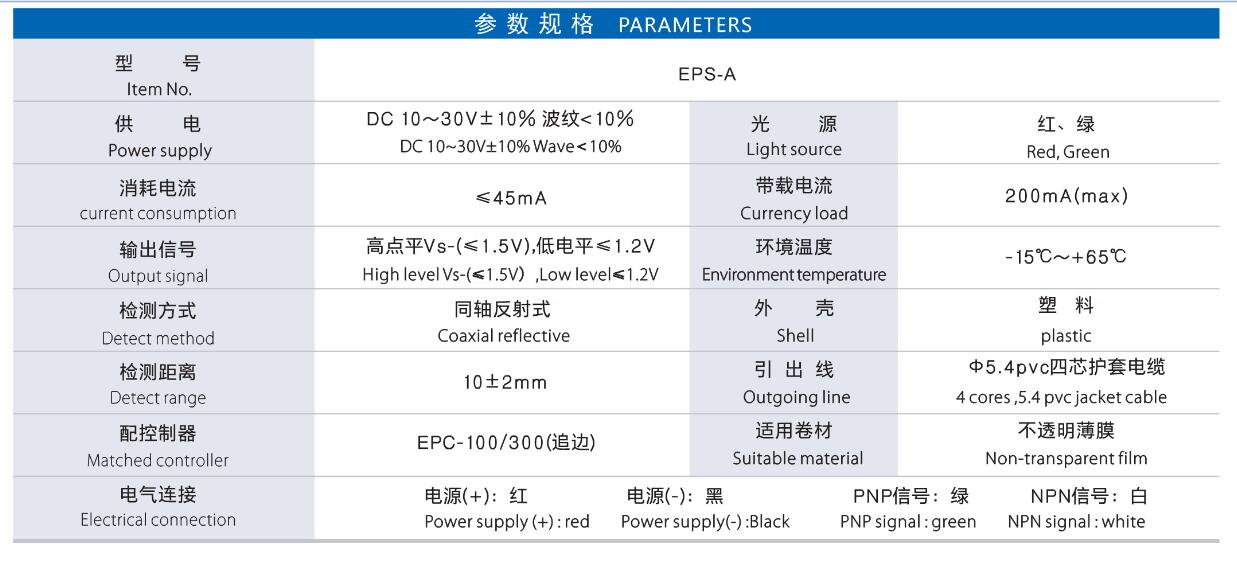

| Specification |
| Item No. | EPS-A |
| Power supply | DC 10~30V±10% Wave＜10% | Light source | Red, Green |
| current consumption | ≤45mA | Currency load | 200mA(max) |
| Output signal | High level Vs-(≤1.5V) Low level≤1.2V | Environment temperature | -15℃~+65℃ |
| Detect method | Coaxial reflective | Shell | plastic |
| Detect range | 10±2mm | Outgoing line | 4 cores Φ5.4 pvc jacket cable |
| Matched controller | EPC-100/300 | Suitable material | Non-transparent film |
| Electrical connection | Power supply (+): red Power supply(-): Black PNP signal: green NPN
signal: white |
Pre-sale service
We will answer the customer asap. (within 24hours)
We can design the machine according to customer’s detail requests.
After-sale service
In correct operation & maintaining, the machine is guaranteed for
one year.
If necessary, we will dispatch technicians to install and
commissioning.
Besides, our technicians will teach and train your workers use the
machine better.
We provide long-term technical assistance.
Web guide system Product Features:
1) High-performance vector drive servo motor,fast response
speed,there is toque control and speed limit,acceleration and
deceleration.
2) High-speed CPU operation,support web control(EPC),follow line
control(LPC),chase center control(CPC),stagger control(SPC),can be
used ultrasonic sensor,phote sensor and CCD sensor.
3) LCD touch control panel,beautiful and practical,easy to operate.
4) Actuator with servo drive ball screw,small noise and
maintenance-free.
5) Actuator with encoder and absolute linear position feedback,can
adapt to different mechanical stroke without limit switch and
thelimit position never change.
6) Can enter three high-speed analog input,can connect two analog
sensors and one outside control analog,(For example,trimming
position,serpentine speed,etc.).
7) Multiple hardware and software protection,Operation
stability,strong anti-interference ability,there are different way
for emergency response to failure of the components.
8) Flexible installation method.
