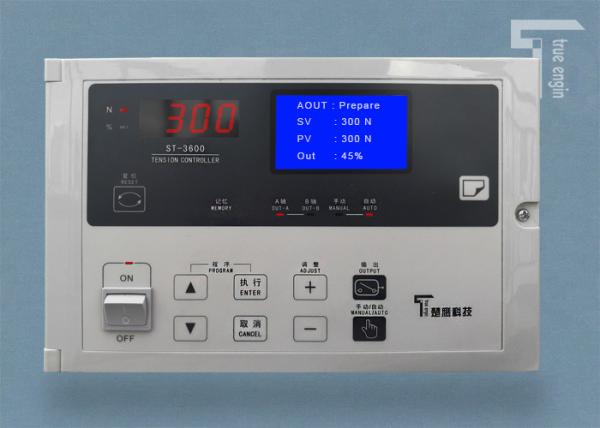

ST-3600 Auto tension controller

Paper Slitting Machine Auto Tension Controller Taper Tension Control Mode

Characters:

ST-3600 is a simple but powerful tension controller.The Guide of its panel operations is as follows:

1. Button of output on/off switch : switch on the output for outputs between terminals PA-PAN,SA-GND or PB-GND, SB-GND ; switch off the output for "off" on LED display and controller provides no output at all.

2. Manual/automatic mode switch button : change status between manual and automatic by pressing the button.

3. Page turning button: turn page of LCD display screen.

4. Calculus by the algorithm can achieve taper tension control.

5. STS,STSA tension loadcell for option

6. Compatible PNP.NPN type proximity switch.

7. Panel key quick coil /output memory reset operation

8. Over-current, overheating protection switching power supply, long-term reliable operation.

Speed start up connection

Strat Up mode must be selected in speed,the default setting is speed start up mode and set C35 to main reel diameter and set C36 to main reel teeth.MC0 must connect main reel promixity switch/hall-effect switch pulse signal, 24V +~GND terminals to supply power to approach switch/hall-effect switch.If the hall-effect switch is supplied by 12V,its power supply wiring can't be connected on 24V,itcan be partialed pressure into 12V,then you can connect(the example as right side follows)

Packing(Packaging & Delivery)

1. Neutral carton packing
2. One piece in one carton box
3. Normally one controller with two loadcells,this is easy for shipping.
4. One unit shipping
5. Lead time:within 3 days

FAQ

1. How to place an order?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2. Does SNC offer any discount?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3. What terms of payment are available?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4. When will you arrange the production?
We will arrange the production immediately after receiving your payment.

5. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients

6. Do you have warranty ?
Yes, we provide 2 years warranty for most of our products.

Wuhan Micro Control Electric Co,LTD ( Wuhan True Engin Technology Development Co., Ltd ) is located in the coast of South Lake and surrounded by numerous colleges and universities.The Company focuses on the developing and production of industrial test and control system .True Engin is the first company which is committed to the tension control system developing in China. After more than ten years of prosperity , it has forged an excellent team in developing and application .Our Instructors lead tens of engineering masters and CNC technology professionals that treating technology innovation,high-quality protection to the products and seamless customer service as the thrust of the development of enterprises.We committed to upgrading the technology of Chinese Printing and Packaging Machinery Control System，Complex Control System and Cutting Machine Control System.Our target is comprehensive upgrading of the competitiveness of domestic industry of Machine Controlling

In the direction of Networked Measurement and Control System，we have a large number of advanced test and analysis equipment,software and Network Control Development Platform.We have the equipments such as U.S. HP, TEKTRONIX, NI, FLUKE and so on.We also have a close co-operation with the Measurement control Institute ，the Friction Institute, the Materials Institute of the Wuhan Technology University，and have a wide range of products co-operation with the Ordnance factory 711, 3303. Core parts through 711 SMT production lines, product after 711 of ISO9000 quality management system review and GJB related mechanical and electrical performance test.

Through years of research and development our company has formed a series of products about PLC、tension control system、tension sensing system、tension controller、tension detector、Mitsubishi magnetic powder brake、Mitsubishi tension detector、Mitsubishi tension controller、magnetic powder clutch and so on.The series of tension products are widely equipped with machinery equipments on a variety of printed-packaging, textile, wire and cable industry in the domestic, we have successfully provided the best match of tension control system and OEM for several magnetic clutch industry or magnetic powder brake industry.
