Mitsubishi replaceable Auto tension controller Input AC220V Max
Current 4A

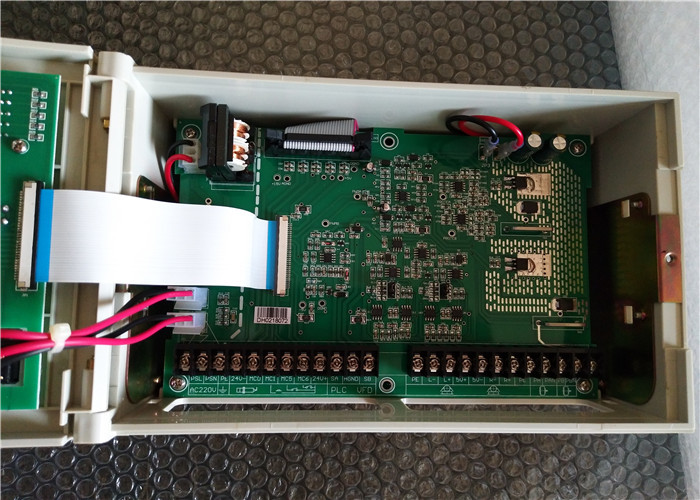

ST-6400 Auto tension controller
Auto tension controller
Auto controller can automatically adjusts the output of the
controller according to the needs of the tension control, to obtain
a constant tension or taper tension.It can be divided into the
feedback type and calculation type and synchronous tension control
type according to the principle of control settlement ,
A. Feedback type auto tension controller
Feedback type automatic tension controller directly use the tension
sensor detecting coil material tension, and feedback to the
controller with measure tension, and compare to the controller
setted tension (aim tension), compared the difference after
internal controller PID arithmetic, automatically adjust the
controller's output current (voltage) to the magnetic powder
clutch, brake, or inverter, servo motor drive, until themeasured
tension equal to the setted tension, to achieve constant tension or
precision taper tension control, so feedback type tension
controller control mode is a kind of closed loop tension control.
Characters:
1. Selectable diffential and strain tension detectors
2. Unique solution of external signal reel diameter
calculus,perfect for the linear taper tension control
3. Unique technology of automatic acceleration/deceleration
detection guarantees the simultaneous tension adjustment
automatically
4. Two starting modes of "level" and "speed"
5. Function of memory output
6.Function of low exciting outputs applied on magnetic powder brake
and clutch
| Parameters |
| Model | ST-6400 |
| Power Supply | AC 180~260V 50/60HZ |
| Input | Analog singal | 1.L+~L-;R+~R-;Left,right tension loadcell signal input
STS tension loadcell signal (0~200mv,power supply DC5V)
STSA tension loadcell signal(0~15mv;power supply DC5v)
2.AI1.AI2:two roads external analog voltage input 0~10V/0~5V |
| Digital signal | 1.MC0:Main axle proximity switch speed signal ( proximity switch
PNP Type,voltage supply DC24V)
2.MC1,MC5,MC6:points control signal (24V+high electric control
signal) |
| Output | Main output | PA,PB:Two roads 24V/4A power output directly drive magnetic powder
clutch or brake |
| Auxiliary output | SA,SB:Two roads DC0~10V/0~5V output
can drive torque type inverter Synchronously,
SA and PA main axle output changes synchronously,SB and PB main
axle output changes synchronously. |
| Outline size | 246*154*114mm |

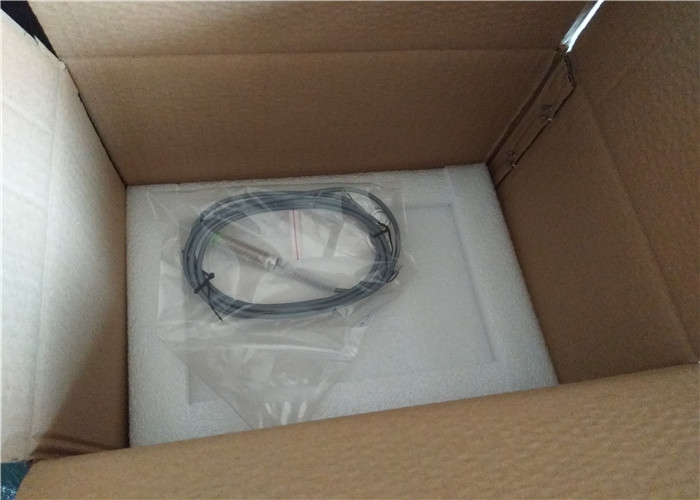

Packing(Packaging & Delivery)
1. Standard Packing Box
2. Packing size 28*20*16cm
3. Gross weight:3kg
4. Normally we ship by Fedex,TNT,UPS or DHL.
5. Lead time within 3 days
