DC 24V Power Tension Amplifier Connecting Two Load Sensors Green Color Tension Signal Amplifier

Tension Measuring Amplifiers Tension Amplifier Connecting Two Load Sensors

Measuring amplifiers ensure a stable bridge supply voltage, They amplify the output signal of the load sensors to a standard signal .

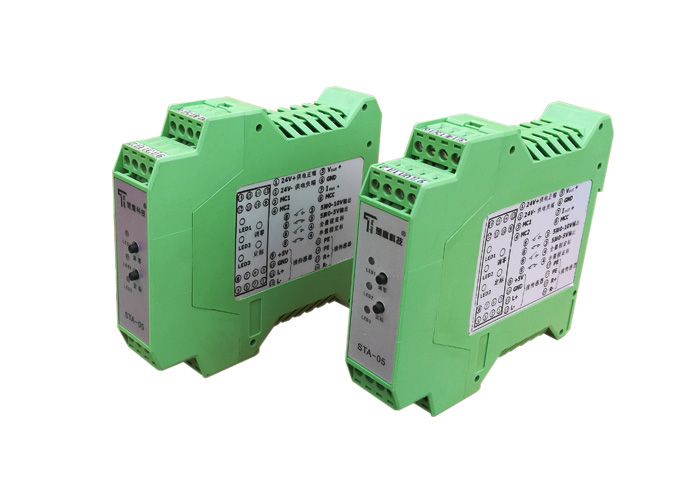

STA-05 Intelligent tension transducer

Features:

1. Key intelligent operation,outside without adjust potentiometer.

2. Hardware and software to restrain power frequency interference, output steady and reliable.

3. Adapt DIN-rail mounting,easy and convenient.

4. Adapt SMT ,small size,light weight.

5. Tension controller with STS ans STSA for option.

Features:

32 bit CPU guarantees high speed, precision, ant-ijamming capability and ensures reliability.

The outside has no adjustable potentiometer.

The tension sensor can select Differential sensor or Strain- gauge sensor.

0~ 10V/ 0~ 5V and 0~ 20mA output signals can be p-rovided to PLC and display instrument.

Use dispensing technology, small volume, light wei-ght.

Using DIN rail mounting, simple and convenient.

Product category:

STA - 05B : Using strain - gauge sensor , input signal r - ange - 5mv ~ + 10mv.

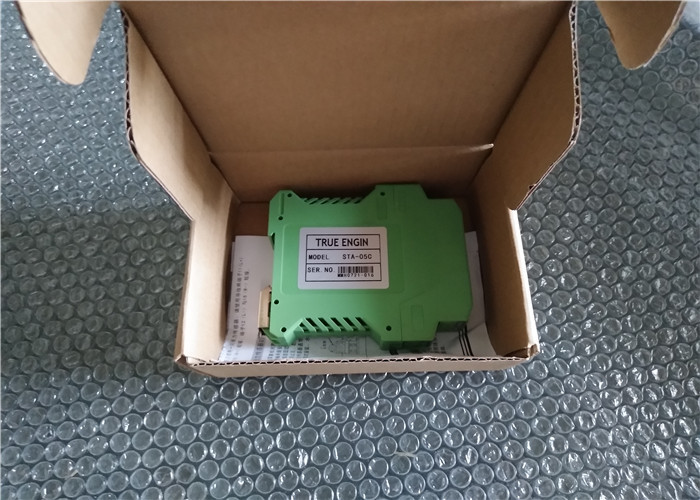

STA - 05C : Using differential sensor , input signal ran - ge - 100mv~ + 200mv

Note :

(1). If STA - 05 tension transducer install STS Differe - ntial sensor by wuhan true engine company , wir - ing colors as follows :

“5V +”— red ,“0V” — black ,“Terminal +”— yellow ,“Terminal -”— green .

If STA - 05 tension transducer install STSA Strai - ngauge sensor by wuhan true engine company , wiring colors as follows :

“5V +” —red , “0V” — black , “Terminal +” — green , “Terminal -” —white .

If only use one tension sensor , please use wires to connect L + with R + , L - with R -
