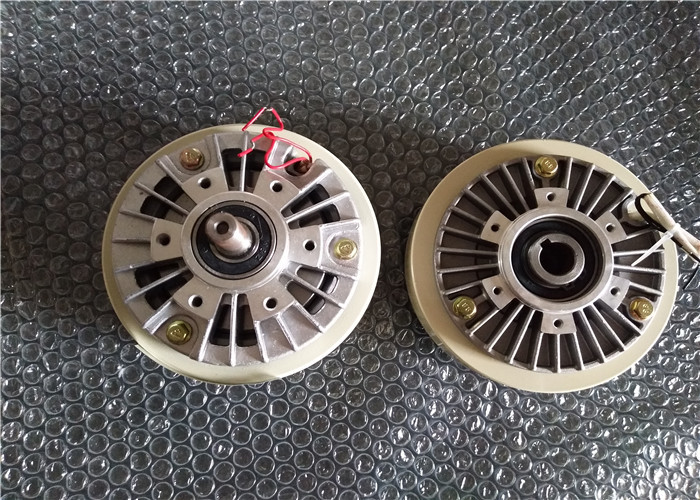

Cellular Magnetic Powder Brake 100NM 10kg Voltage 24V Max Current 2A For Slitting Machine

Features of magnetic powder brake

The transmission torque has a linear relationship with the magnetizing current. The size of the torque can get controlled within large range. Under normal circumstance, the magnetizing current has a linear relationship with transitive torque within range of 5%-100% rated torque.

The friction part will generate heat inevitably or even destroyed when it keep continuous sliding. But this device has a complete cooling set, it will not generate a lot of heat after long time running and it has a long service life.

Application of magnetic powder brake

Due to the features of the magnetic powder clutch and brake, they have been widely used in paper making, printing, plastic items, rubber industry, textile industry, printing and dyeing,wire and cable, metallurgy industry and tension control of winding and winding in roll material processing industry.

Packing and delivery

1. Neutral carton packing
2. One piece in one carton box
3. One unit shipping
4. Lead time:within 3 days

About life of magnetic powder brake

The use of magnetic powder clutch/brake life lies in the life of the magnetic powder.In general, magnetic powder in the condition of not overloaded, its service life is 4500~7500 hours;But in some condition it can prolong service life many times, such as: reduce the magnetic powder clutch/brake torque, relative sliding speed and slip power to the rating of 50% 70%.That is to say, when the design, allowance enlarge some as much as possible.

About the torque of magnetic powder brake

Magnetic powder clutch/brake factory after use, the magnetic powder in the early stages of using break-in happens, torque will be slightly down, can be adjusted by electric current to compensate.
