Current 1.8A DC24V magnetic Powder Brake For Tension Control Parts
Magnetic Brake

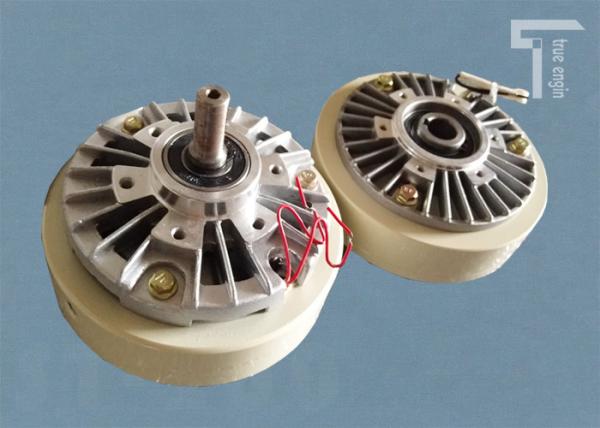

Single shaft coulping Magentic Powder Brake 50NM 5 KG DC24V Current
1.8A
Attention for using magnetic powder brake:
1 Install it with correct mounting method (make high-speed rotation
side as the input side) to use the magnetic powder clutch. If the
mechanical structure of output and input shafts have to be
installation reversely, make sure to use the under 1000R/MIN. If
the output shaft and input shaft be installed reversely, which will
make the machine idle for a long time, the magnetic powder clutch
will greatly shorten the life by mixing magnetic powder.
2 Note the moisture. If the magnetic is damp, then performance will
become unstable, so be careful do not to let the oil or water get
into the housing. Especially when installed in the gear box, oil
penetrated the internal branch of the housing through the shaft, so
please seal it with film completely.
3 Note the surface temperature. Caused by continuous operation, the
maximum temperature of the surface is below 90 degree when running
more, than the value and durability will be greatly reduced. Make
sure to limit the temperature will not above90 degree, make sure to
keep the use of sliding within allowed work range
| Torque | Voltage | Speed | Max current | D1 | D2 | D3 | L1 |
| 6 | 24 | 1400 | 0.8 | 130 | 62 | 44 | 25 |
| 12 | 24 | 1400 | 1 | 157 | 62 | 50 | 30 |
| 25 | 24 | 1400 | 1.5 | 182 | 78 | 58 | 40 |
| 50 | 24 | 1400 | 1.8 | 219 | 100 | 75 | 50 |
| 100 | 24 | 1000 | 2 | 290 | 120 | 90 | 65 |
| 200 | 24 | 1000 | 3 | 335 | 140 | 110 | 70 |
| 400 | 24 | 1000 | 4 | 398 | 200 | 130 | 99 |
| L1 | L2 | L3 | L4 | 6-S | d | t | R-diammeter | Deepth | Net weight |
| 25 | 10 | 67 | 107 | M5 | 12 | 4 | M4 | 8 | 3 |
| 30 | 15 | 84 | 133 | M5 | 16 | 5 | M4 | 8 | 5 |
| 40 | 19 | 91 | 154 | M6 | 20 | 6 | M5 | 10 | 7.5 |
| 50 | 22 | 110 | 185 | M6 | 25 | 8 | M6 | 12 | 13 |
| 65 | 25 | 143 | 238 | M8 | 30 | 8 | M10 | 20 | 28 |
| 70 | 30 | 170 | 275 | M10 | 35 | 10 | M10 | 20 | 47 |
| 99 | 35 | 199 | 338 | M12 | 45 | 14 | M10 | 20 | 73
|
Application:
1. Textile machinery: fiber twisters, treatment machines, weaving
machines
2. Metal fishing systems: extruders, wire stretchers, presses,
welders, steel wire retractors, cutters, pipe makers, wire winding
machines
3. Machine tool systems: lathes,
4. Millers, steel extruders, CNC lathes, specialized machinery
5. Transportation equipment: hoists, feeders, conveyors, rollers,
winders
6 Paper- making systems: bag-making machines, box-making machines,
slitters, book-making machinery, cutters, copy paper machines
The magnetic powder brake/clutch is composed of active rotor(input
shaft), driven rotor(output shaft) and Yoke with excitation coil.
The three parts are assembled relative concentric and form a system
which can rotate relatively. The annular gap between active rotor
and driven rotor is full of alloy powder which has high magnetic
conductivity.
