ST-103 Manual Tension Controller
Film Slitting Machine Manual Tension Controller DV 24 V For Web
Tension Control

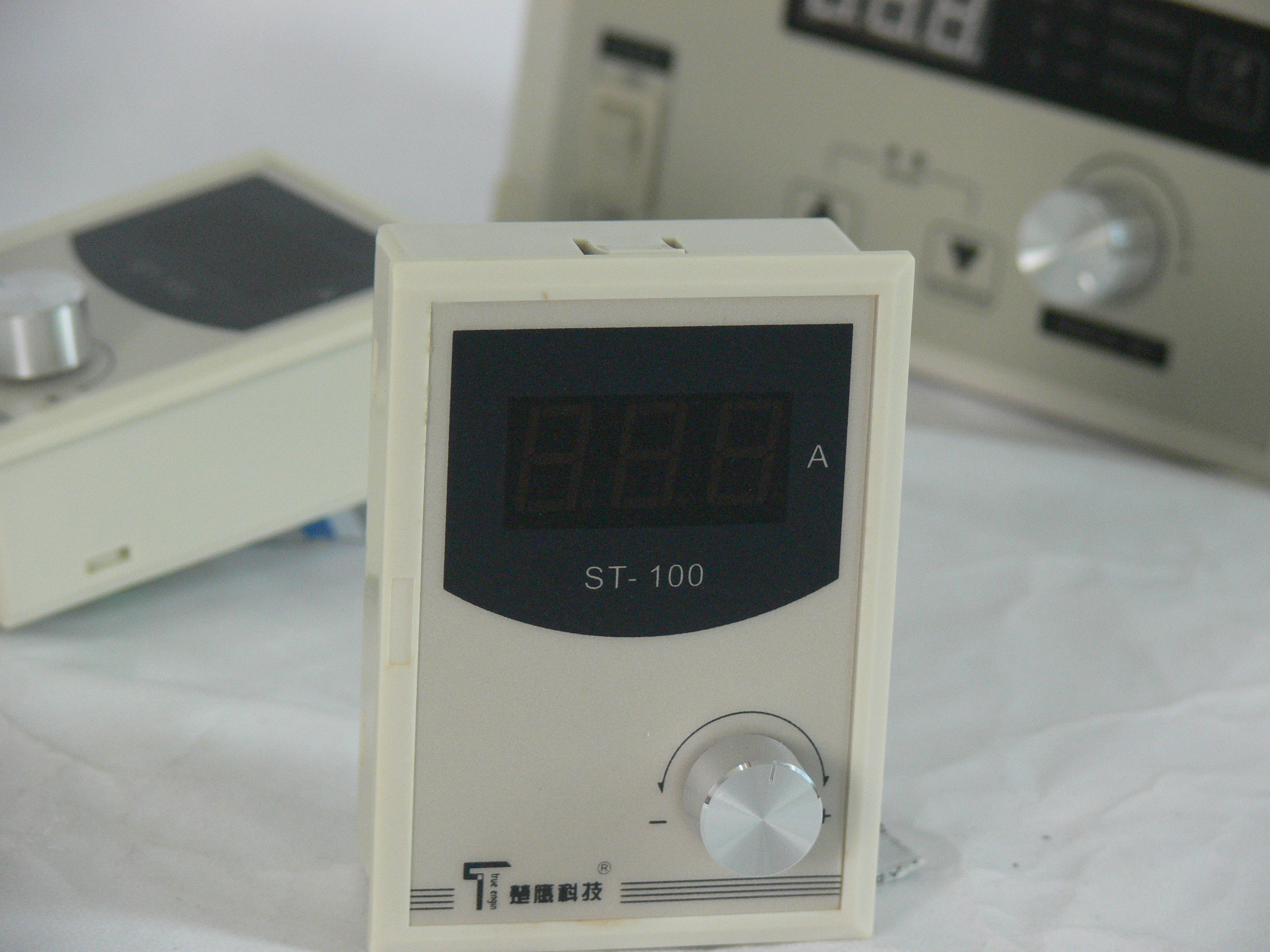

ST-100 manual tension controller
Features:
1. Small in size and thin in case.
2. No fan cooling
3. Max output current 4.00A,adjust step 0.01A.
4. 10s no operation,can remember present output current value.
5. With short cut protection.
6. With forbidden output and allow output function.
| Parameter |
| Model | ST-103 |
| Power supply | DC26~28V/5A |
| Output voltage | DC24V |
| Output current | 0~3A |
| Dimension | 96*69*32mm |

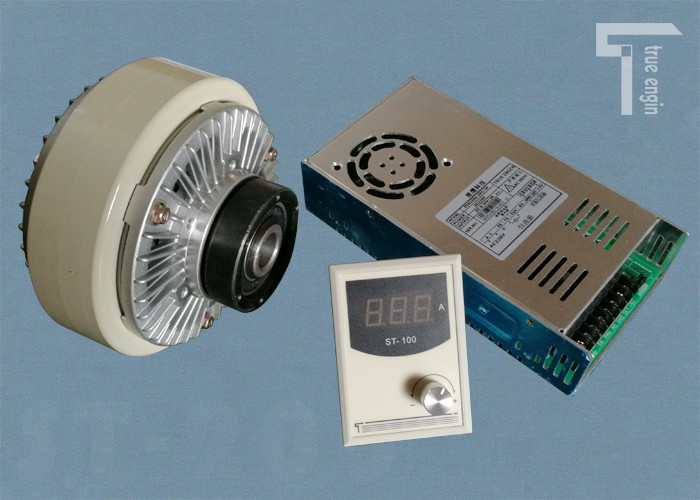

Usually work with Powder Brake
Description:
Powder brake is used for tension control, overload protector,
torque loader, such as printing machine, paper making machine,
re-reeling machine, wire drawing machine, metal calender, film
processor, textile machine etc.; or the loading device when doing
loading experiments, such as motor, engine, hydraulic gear reducer.
Magnetic brake is based on electromagnetic theory and the use of
magnetic torque transmission. Its exciting current and transmission
of torque with a linear relationship between the basic features.
Has nothing to do with the slip case to pass a certain torque, with
fast response, simple structure, no pollution, no noise, no shock
and vibration energy-saving advantages. It is multi-purpose,
superior performance, the automatic control devices. It is now
widely used in various machinery for the purpose of braking, power
test load, unreeling tension control and so on.
| Model | Torque NM | Voltage
V | Current
A | Speed
rpm/min | Slip power
w | Outline dimention | Hollow shaft size | Center ring installing size |
| D | L | d(H7) | b(F8) | L1 | L2 | D1(g7) | D2 | n-dX1 dep |
| ZA-0.6Y | 6 | 24 | 0.3 | 1800 | 130 | 128 | 68 | 12 | 4 | 4 | 2 | 70 | 80 | 3-M5*10 |
| ZA-1.2Y | 12 | 24 | 0.39 | 1800 | 320 | 160 | 88 | 18 | 5 | 2 | 5 | 74 | 100 | 3-M6*10 |
| ZA-2.5Y | 25 | 24 | 0.73 | 1800 | 450 | 180 | 98 | 20 | 5 | 5 | 5 | 100 | 140 | 3-M10*19 |
| ZA-5Y | 50 | 24 | 0.94 | 1800 | 700 | 220 | 115 | 30 | 7 | 5 | 5 | 110 | 150 | 3-M10*19 |
| ZA-10Y | 100 | 24 | 1.21 | 1800 | 900 | 275 | 136 | 35 | 10 | 6 | 5 | 110 | 150 | 6-M10*22 |
| ZA-20Y | 200 | 24 | 1.9 | 1000 | 1900 | 335 | 160 | 45 | 12 | 8 | 6 | 160 | 240 | 3-M5*30 |
| ZA-40Y | 400 | 24 | 2.2 | 1000 | 2600 | 360 | 210 | 50 | 12 | 8 | 6 | 160 | 240 | 3-M5*30 |
Powder Clutch
Belief introduction
A magnetic powder clutch is a special type of electromagnetic
clutch which does not use friction plates. Instead, it uses a fine
powder of magnetically susceptible material (typically stainless
steel) to mechanically link an otherwise free wheeling disc
attached to one shaft, to a rotor attached to the other shaft.
When a magnetic fieldis applied to the powder, it forms chains
connecting the disc and rotor. The strength of the chains depends
on the strength of the magnetic field. We use the finest materials
available for magnetic components to yield high friction indexes,
as well as premium non-asbestos linings to improve response time
and extend working life. We will be reliable brake supplier for
you.
| Model | Torque NM | Voltage
V | Current
A | Speed
rpm/min | Slip power
w | Outline dimention | Hollow shaft size | Flange size | Fixed stator Size |
| D | L | d(H7) | b(F8) | L1 | L2 | L3 | d1*depth | D1(g7) | D2 | D3 | D4 | L4 | d2*depth |
| ZA-0.6A | 6 | 24 | 0.3 | 1800 | 130 | 128 | 86 | 15 | 4 | 4 | 21 | 21 | M6*10 | 70 | 60 | 60 | 82 | 7 | M4*8 |
| ZA-1.2A | 12 | 24 | 0.39 | 1800 | 320 | 160 | 103 | 18 | 5 | 5 | 25 | 32 | M6*10 | 80 | 68 | 68 | 96 | 13 | M6*8 |
| ZA-2.5A | 25 | 24 | 0.73 | 1800 | 450 | 180 | 119 | 20 | 5 | 5 | 26 | 36 | M6*10 | 90 | 80 | 80 | 114 | 17 | M6*8 |
| ZA-5A | 50 | 24 | 0.94 | 1800 | 700 | 220 | 150 | 30 | 7 | 7 | 31 | 48 | M8*12 | 110 | 95 | 95 | 150 | 20 | M8*12 |
| ZA-10A | 100 | 24 | 1.21 | 1800 | 900 | 275 | 166 | 35 | 10 | 10 | 32 | 48 | M10*18 | 125 | 110 | 110 | 176 | 18 | M10*18 |
| ZA-20A | 200 | 24 | 1.9 | 1000 | 1900 | 335 | 198 | 45 | 12 | 12 | 45 | 59 | M10*18 | 160 | 140 | 140 | 200 | 21 | M10*18 |
| ZA-40A | 400 | 24 | 2.2 | 1000 | 2600 | 360 | 258 | 50 | 14 | 14 | 50 | 68 | M10*18 | 160 | 140 | 140 | 200 | 21 | M10*18 |
ST-100
manual tension controller.pdf
