Powder Clutch Control Manual Tension Controller With PLC Case AC
220V Max Current 3A ST-200W Manual Controller

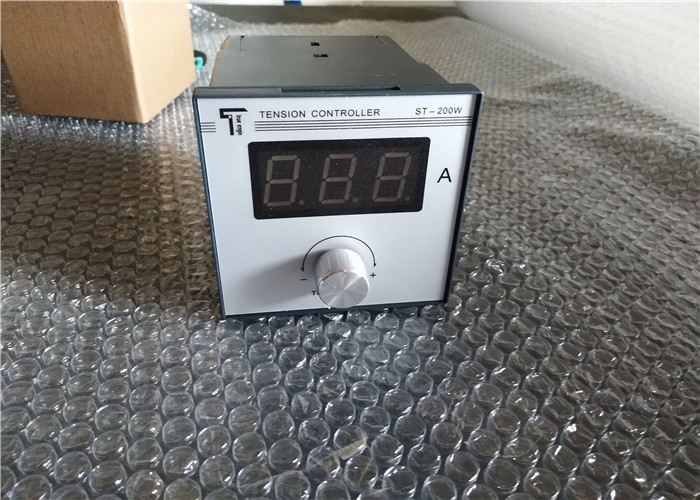

ST-200W Manual tension controller
Features:
1. With Over-current, overheating short-cut protection.
2. No fan cooling
3. With forbidden output and allow output function.
| Parameter |
| Model | ST-203W |
| Power supply | AC 180~260V 50/60HZ |
| Output voltage | DC24V |
| Output current | 0~3A |
| Dimension | 96*96*129mm |
Work with powder Brake
Single axis magnetic powder brake
Single-axle brake is a superior performance of automatic control
components, it is driven by the drive unit and the unit merged. It
powder as the working medium to excitation current control means to
control the brake or transmission of torque. Its output torque and
magnetizing current good linear relationship, and with fast
response, simple structure, making it suitable for wire, cable,
printing, packaging, textiles, rubber, leather, metal foil tape
processing, paper and paper processing Tension Control System and
other relevant coiling device.
Used for braking of printing machine, compound machine, cutting
machine, pouch machine and lamination machine and so on.
| Model | Torque NM | Voltage
V | Current
A | Speed
rpm/min | Slip power
w | Outline dimention | Hollow shaft size | Center ring installing size |
| D | L | d(H7) | b(F8) | L1 | L2 | D1(g7) | D2 | n-dX1 dep |
| ZA-0.6Y | 6 | 24 | 0.3 | 1800 | 130 | 128 | 68 | 12 | 4 | 4 | 2 | 70 | 80 | 3-M5*10 |
| ZA-1.2Y | 12 | 24 | 0.39 | 1800 | 320 | 160 | 88 | 18 | 5 | 2 | 5 | 74 | 100 | 3-M6*10 |
| ZA-2.5Y | 25 | 24 | 0.73 | 1800 | 450 | 180 | 98 | 20 | 5 | 5 | 5 | 100 | 140 | 3-M10*19 |
| ZA-5Y | 50 | 24 | 0.94 | 1800 | 700 | 220 | 115 | 30 | 7 | 5 | 5 | 110 | 150 | 3-M10*19 |
| ZA-10Y | 100 | 24 | 1.21 | 1800 | 900 | 275 | 136 | 35 | 10 | 6 | 5 | 110 | 150 | 6-M10*22 |
| ZA-20Y | 200 | 24 | 1.9 | 1000 | 1900 | 335 | 160 | 45 | 12 | 8 | 6 | 160 | 240 | 3-M5*30 |
| ZA-40Y | 400 | 24 | 2.2 | 1000 | 2600 | 360 | 210 | 50 | 12 | 8 | 6 | 160 | 240 | 3-M5*30 |
1,Application:
Magnetic powder brake is widely used in packaging machines,
printing presses, slitting machine, paper machinery, textile
machines and other transmission equipment.
2.Remarks:
(1) The formal installation method (high-speed rotating side as the
input side) to use magnetic powder clutch.
(2) Please note that the moisture. Magnetic particle moisture, the
performance will become unstable, so be especially careful not to
let the oil or moisture intrusion internal.
(3) Please note that the surface temperature.
