Measuring Load Cell Signal Amplifier DC 24V Low Temperature Drift
For Face Mask Machine
Measuring Amplifiers Tension Amplifier DC24V With Two Load Sensors
Alternative Erhardt-Leimer
Measuring amplifiers ensure a stable bridge supply voltage, They
amplify the output signal of the load sensors to a standard signal
.

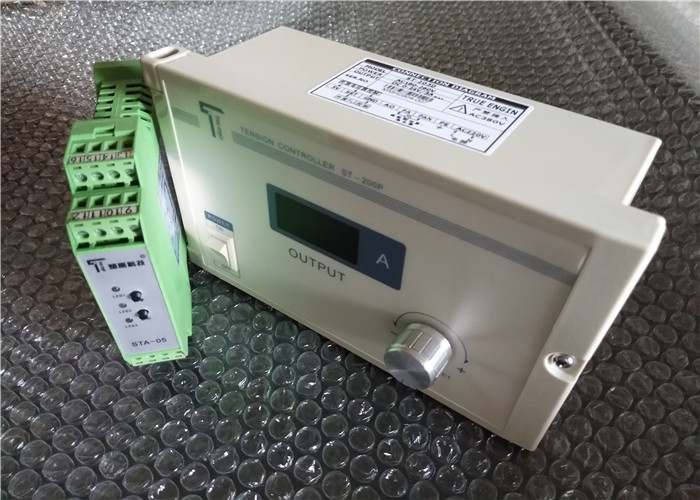

STA-05 Intelligent tension transducer
Features:
1. Key intelligent operation,outside without adjust potentiometer.
2. Hardware and software to restrain power frequency interference,
output steady and reliable.
3. Adapt DIN-rail mounting,easy and convenient.
4. Adapt SMT ,small size,light weight.
5. Tension controller with STS ans STSA for option.
| Parameters |
| Model | STA-05C | STA-05B |
| Power Supply | DC 24V |
| Input Analog singal | L+~L-;R+~R-;Left,right STS tension loadcell signal (0~200mv,power
supply DC5V) | L+~L-;R+~R-;Left,right STSA tension loadcell signal (0~15mv;power
supply DC5v) |
| Control output | 1. Vout-GND:DC0~10V/0~5V
2. Iout-GND:DC0~20mA |
|
| Fixed output | 5V+-GND:DC5V tension loadcell power supply |
| Outline size | 115x100x23 |
Features:
32 bit CPU guarantees high speed, precision, ant-ijamming
capability and ensures reliability.
The outside has no adjustable potentiometer.
The tension sensor can select Differential sensor or Strain- gauge
sensor.
0~ 10V/ 0~ 5V and 0~ 20mA output signals can be p-rovided to PLC
and display instrument.
Use dispensing technology, small volume, light wei-ght.
Using DIN rail mounting, simple and convenient.
Product category:
STA - 05B : Using strain - gauge sensor , input signal r - ange -
5mv ~ + 10mv.
STA - 05C : Using differential sensor , input signal ran - ge -
100mv~ + 200mv
Replaceable for Amplifier
The LE-50PAU power amplifire is a compact typeunit designed to be
incorporated in the panel, using aluminumdie cast and plastic
cover.
(1) Mounting holes arranged at four corners of the main unit, used
to fix the unit within the control panel.
(2) Transparent cover prepared for display unit and operation key.
(3) 4-digid red 7-segnent display unit used to display the output
current / voltage, or to execute each
setting operation.
(4) operation key used to set the input signal level, non-linearity
data, stop gain, stop bias, stop timer,
etc.
(5)’ Side cover.
(6) Panel cover. Each cover can be opend by inserting the pawl in
the position marked with arrowhead.
(7) Transparent cover for terminal block.
(8) Termanal block for input / output and power source. When the
right / left mounting screw ara loosened
evenly, it is possible to remove the entire terminal block.
(9) Small window cover for DIP switch. The cover is opend, to see
the DIP switch. The DIP switch is
used to set each mode or full-scale value of output current.
(10) Type LE-5AP operator panel connecting connector. The cable is
connected by opening the side
cover
(11) LED used to display the power source and cach status.
Loaddell
Features: Low temperature drift, good linear, high stability, sturdy and
durable
| Model | STS-010 | STS-030 | STS-050 | STS-100 | STS-200 | STS-500 |
| Power supply | DC 5V |
| Rated Voltage | Small base: 10~100kg; Large base: 200kg~500kg |
| Working Principle | Differential type |
| Rated Output | 0~180mv |
| Bearing | P204 ball shape universal bearing P204 |
| Electrical Connection | +5v:Red GND:Black Signal(+):Yellow Signal(-):Green |
| Outsize | Small base:134*44*78mm Large base: 150*68*78mm |
