Portable Measuring Tension Amplifier Analog Signal DC 24V With Plastic Cover Tension Transducer

Measuring Amplifiers Tension Amplifier DC24V With Two Load Sensors Alternative Erhardt-Leimer

Measuring amplifiers ensure a stable bridge supply voltage, They amplify the output signal of the load sensors to a standard signal .

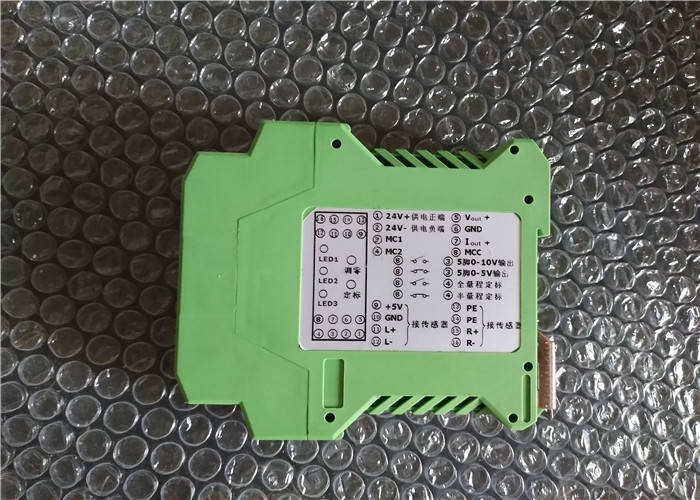

STA-05 Intelligent tension transducer

Features:

1. Key intelligent operation,outside without adjust potentiometer.

2. Hardware and software to restrain power frequency interference, output steady and reliable.

3. Adapt DIN-rail mounting,easy and convenient.

4. Adapt SMT ,small size,light weight.

5. Tension controller with STS ans STSA for option.

Features:

32 bit CPU guarantees high speed, precision, ant-ijamming capability and ensures reliability.

The outside has no adjustable potentiometer.

The tension sensor can select Differential sensor or Strain- gauge sensor.

0~ 10V/ 0~ 5V and 0~ 20mA output signals can be p-rovided to PLC and display instrument.

Use dispensing technology, small volume, light wei-ght.

Using DIN rail mounting, simple and convenient.

Product category:

STA - 05B : Using strain - gauge sensor , input signal r - ange - 5mv ~ + 10mv.

STA - 05C : Using differential sensor , input signal ran - ge - 100mv~ + 200mv

Replaceable for Amplifier

The LE-50PAU power amplifire is a compact typeunit designed to be incorporated in the panel, using aluminumdie cast and plastic cover.

(1) Mounting holes arranged at four corners of the main unit, used to fix the unit within the control panel.
(2) Transparent cover prepared for display unit and operation key.
(3) 4-digid red 7-segnent display unit used to display the output current / voltage, or to execute each
setting operation.
(4) operation key used to set the input signal level, non-linearity data, stop gain, stop bias, stop timer,
etc.
(5)’ Side cover.
(6) Panel cover. Each cover can be opend by inserting the pawl in the position marked with arrowhead.
(7) Transparent cover for terminal block.
(8) Termanal block for input / output and power source. When the right / left mounting screw ara loosened
evenly, it is possible to remove the entire terminal block.
(9) Small window cover for DIP switch. The cover is opend, to see the DIP switch. The DIP switch is
used to set each mode or full-scale value of output current.
(10) Type LE-5AP operator panel connecting connector. The cable is connected by opening the side
cover
(11) LED used to display the power source and cach status.
